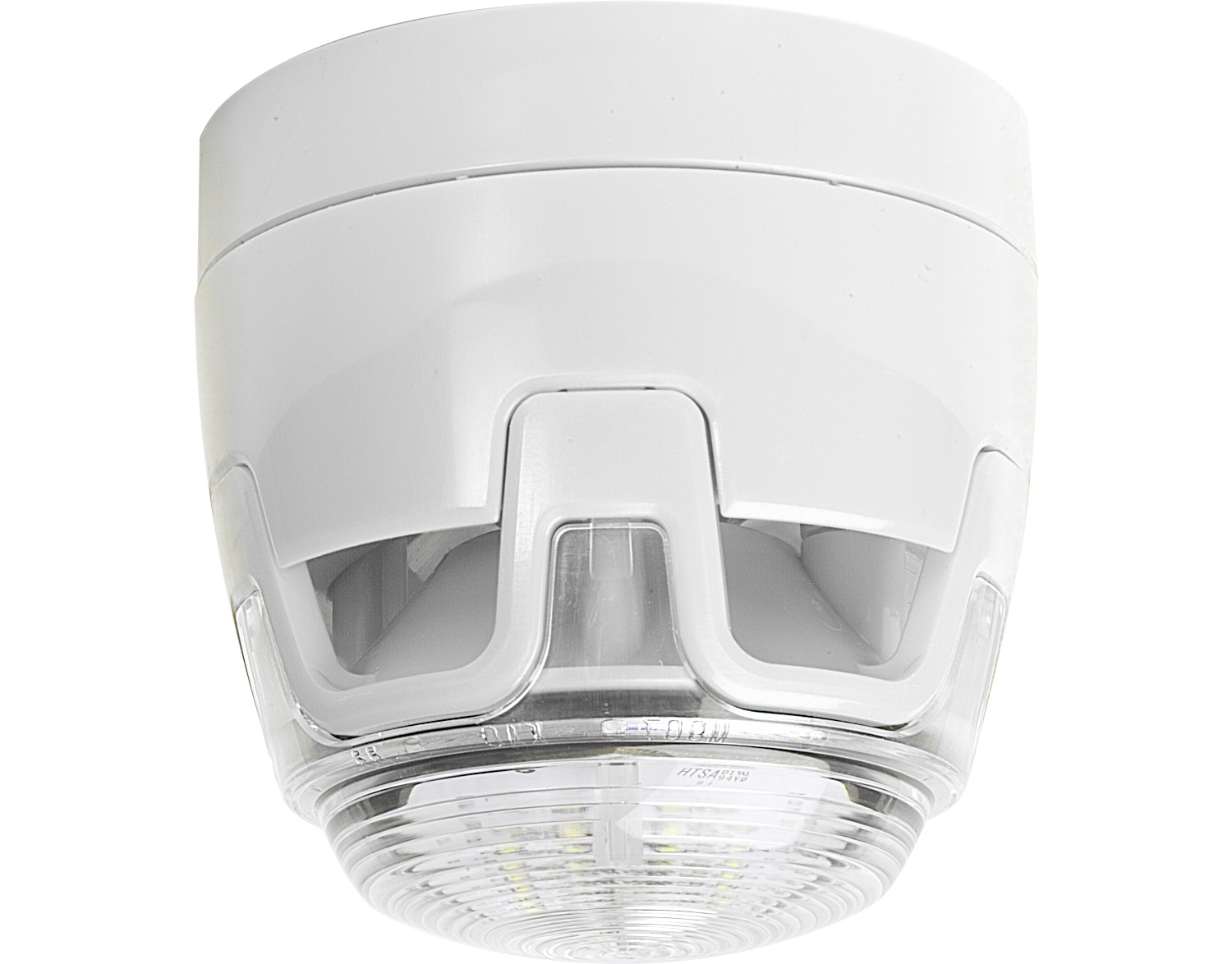

Kombinované akusticko-optické signalizační zařízení, bílý kryt, kategorie Open

CWSS-WR-S3

O Maják bílo-červená LED

Vlastnosti & Výhody
Technické údaje
Příslušenství
Dokumenty

Flexibilní instalace díky volitelné hluboké patici s více otvory pro kabely
Konstrukce umožňující všechny běžné způsoby montáže
Všesměrové vyzařování světla
Výběr ze 32 tónů
Nastavitelná úroveň hlasitosti (vysoká nebo střední)
Pro vnitřní použití až do krytí IP65
Vhodné pro nástěnnou a stropní montáž
Optimalizované pro systémy 12 V a 24 V
Schválené dle EN54-3 a EN54-23

Doplňující informace
:
Pro použití ve vlhkém prostředí je nezbytné sirénu upevnit do hluboké patice s krytím IP65, bránící pronikání vlhkosti a nečistot. (typové CWR, PS188, PS189). Použití hlubokého IP zásuvky snižuje výkon dB v průměru o 4 dB. Náhrada za číslo výrobku 766240.

Connection terminal	0.5 ... 2.5 mm2
Operating voltage	12 ... 29 V DC
Flash color	red
Frequency of flash	approx. 0.5 Hz
Color	base: white, similar to RAL 9003 / cap: transparent
Weight g	approx. 236 g
Material	PC (Lens)
Air humidity	< 96 % (non-condensing)
Sound level @ 12 V DC	96.5 dB(A) @ 1 m (DIN Tone)
Sound level @ 24 V DC	102.5 dB(A) @ 1 m (DIN Tone)
Type of protection	IP 21C, IP 65 with base CWW
Specification	EN 54-3 acoustic signaling device; EN 54-23 optical signaling device, (Cat O, 24 ... 29 V DC)
Current consumption @ 12 V DC	approx. 15.5 mA @ DIN Tone
Current consumption @ 24 V DC	approx. 35.4 mA @ DIN Tone
Ambient temperature	-25 °C ... 70 °C

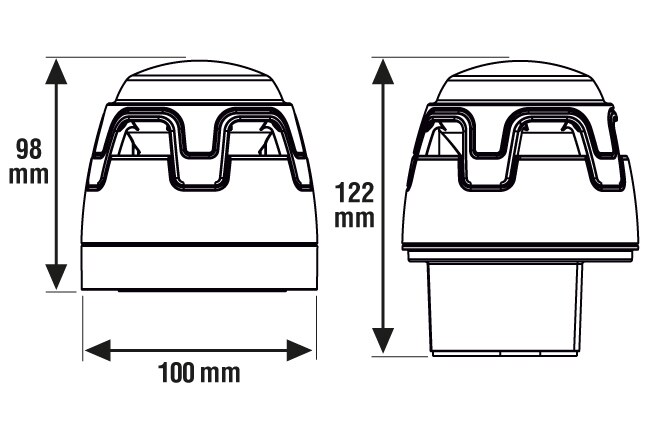

Dimensions	ø: 100 mm H: 122 mm (incl. IP base)

766472W Patice IP65, nízký profil, bílá
CWR Patice IP65, červená
CWW Patice IP65, bílá
P310 Těsnicí kroužek pro IP65
